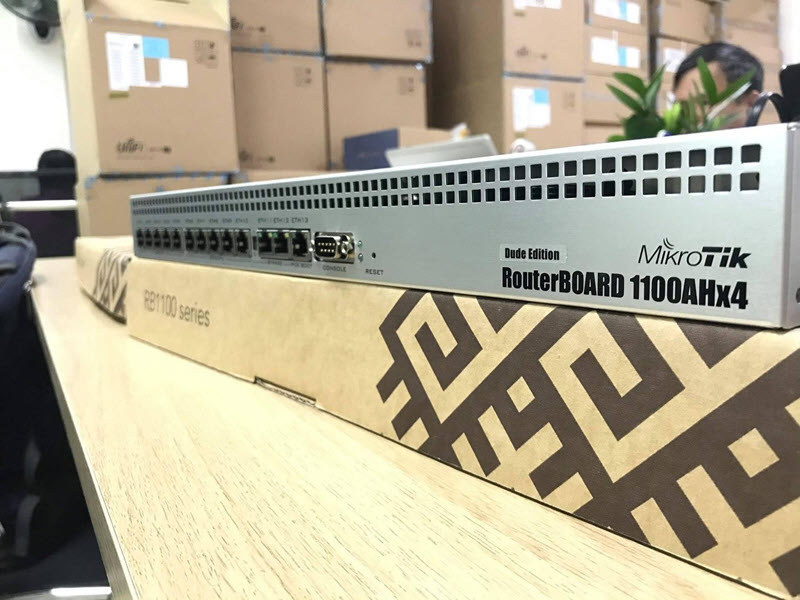

RB1100AHx4 (RB1100x4) là thiết bị định tuyến cân bằng tải của hãng Mikrotik đến từ Latvia, Với cấu hình mạnh mẽ, giá thành hợp lý là lựa chọn hàng đầu của các văn phòng, doanh nghiệp với quy mô khoảng 500 người dùng.
Router Mikrotik RB1100AHx4 với cấu hình linh động trên từng Port, có thể thiết lập cân bằng tải lên đến 10 WAN đường truyền vào.
Thông số kỹ thuật router MikroTik RB1100x4
Datasheet RB1100x4 (RB1100AHx4) |
Specifications |
Product code |
RB1100x4 |
Architecture |
ARM 32bit |
CPU |
AL21400 |
CPU core count |
4 |
CPU nominal frequency |
1.4 GHz |
Dimensions |
443 x 148 x 44 mm |
License level |
6 |
Operating System |
RouterOS |
Size of RAM |
1 GB |
Storage size |
128 MB |
MTBF |
Approximately 100'000 hours at 25C |
Storage type |
NAND |
Tested ambient temperature |
-40°C to 70°C |
IPsec hardware acceleration |
Yes |
Powering |
Number of DC inputs |
2 |
AC input range |
100-240 VAC |
Number of DC inputs |
2 (2-pin terminal, PoE-IN) |
2-pin terminal input Voltage |
-48, 12-57 V |
Max power consumption |
20 W |
FAN count |
Passive |
PoE in |
Passive PoE |
PoE in input Voltage |
20-57 V |
Ethernet |
10/100/1000 Ethernet ports |
13 |
Peripherals |
Memory card type |
microSD |
Memory Cards |
1 |
Serial console port |
RS232 |
Other |
Current Monitor |
Yes |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Mode button |
Yes |
Certification & Approvals |
Certification |
CE, EAC, ROHS |
IP |
IP20 |
