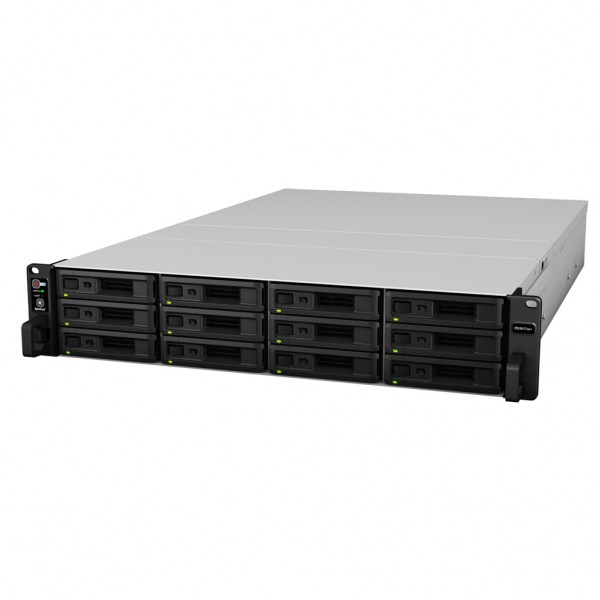

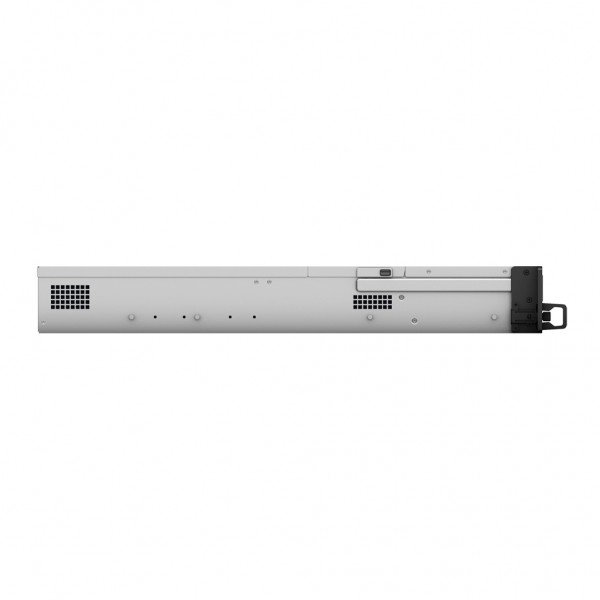

Thiết bị lưu trữ NAS Synology RS3617xs+

CPU

Intel Xeon D-1531 six-core 2.2GHz burst up to 2.7GHz

Hardware encryption engine

Yes (AES-NI)

Memory

8GB DDR4 ECC UDIMM (expandable up to 64GB)

Compatible drive type

12 x 3.5" or 2.5" SATA (hard drives not included)

Maximum internal raw capacity

168TB (12 x 14TB HDD)4 (The actual capacity will differ according to volume types)

External ports

USB 3.0 x 2, Expansion port (Infiniband) x 2

Size (HxWxD)

88 mm x 430.5 mm x 692 mm

Weight

14.5 kg

LAN

10GbE RJ-45 (10GBase-T) x 2, 1GbE RJ-45 x 4

PCIe 3.0 x8 slot

Two running at x8 mode, supports two dual-port 10GbE network interface cards

Wake on LAN/WAN

Yes

Wireless support (dongle)

Yes

AC input power voltage

100V to 240V AC

Power frequency

50 / 60Hz, single phase

Operating temperature

5 to 35°C (40 to 95°F)

Storage temperature

-20 to 60°C (-5 to 140°F)

Relative humidity

5% to 95% RH

Networking protocols

SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP)

File system

Internal: Btrfs, ext4
External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT3

Storage management

Maximum single volume size: 108TB/200TB (at least 32GB RAM required, for RAID 5 or RAID 6 groups only); maximum internal volume: 1,024,
maximum iSCSI target: 128, maximum iSCSI LUN: 512, RAID clone/snapshot support; Synology Expansion Unit support: RX1217/RX1217RP

Supported RAID type

Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

File sharing capability

Maximum user account: 16,000; maximum group: 512; maximum shared folder: 512; maximum concurrent SMB/AFP/FTP/File Station connections : 2,048

Privilege

Windows Access Control List (ACL)

Virtualization ready

VMware vSphere 6, Microsoft Hyper-V, Citrix, OpenStack Cinder

Directory service

Windows AD integration: Domain Users login via Samba (SMB)/AFP/FTP/File Station, LDAP integration

Security

FTP over SSL/TLS, IP auto-block, firewall, encrypted network backup over Rsync, HTTPS connection

Utilities

Synology Web Assistant, Cloud Station Drive, Cloud Station Backup, Cloud Sync Decryption Tool, Evidence Integrity Authenticator,
Photo Station Uploader, Snapshot Manager for VMware, Snapshot Manager for Windows, NFS Plug-in for VMware VAAI

Supported clients

Windows 7 onwards and Mac OS X® 10.10 onwards

Supported browsers

Chrome™, Firefox®, Internet Explorer® 9 onwards, Safari® 8 onwards, Safari (iOS® 7 onwards on iPad®), Chrome (Android 4.0 onwards on tablets)

Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar,
Português do Brasil, Português Europeu, Türkçe, Český,

File Station

Virtual drive, remote folder, Windows ACL editor, compress/extract archived files, bandwidth control for specific users or groups, create sharing links, transfer
logs

Backup solutions

Network backup; local backup; desktop backup; configuration backup; OS X Time Machine; backup data to public cloud;
shared folder sync - maximum task number: 32

FTP Server

Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with TFTP
and PXE support, transfer logs

High Availability Manager

Combines two RS3617xs+ into one high-availability cluster

Security Advisor

Malware detection/removal, user account/password, network, system-related security scan

iOS/Android™ applications

DS cloud, DS file, DS finder, DS cam, DS note, DS audio, DS get, DS photo, DS video

Windows Phone® applications

DS file, DS finder, DS audio, DS get, DS photo, DS video

Antivirus Essential

Full system scan, scheduled scan, white list customization, virus definition auto update

Cloud Station Server

Maximum concurrent file transfers: 2,000, retain historical and deleted file versions

Cloud Sync

One or two-way synchronization with public cloud storage providers including Amazon Cloud Drive, Amazon S3-compatible storage, Baiduyun, Box,
Dropbox, Google Cloud Storage, Google Drive, hubiC, Megafon Disk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers, Yandex Disk

DLNA/UPnP® Media Server

DLNA certified, PS3®/PS4®/Xbox 360®/Xbox One® support

Download Station

Supported download protocols: BT/HTTP/FTP/NZB/eMule; Maximum concurrent download task: 80

Log Center

SSL connection, log rotation: 6 months, 1 year, 2 years, 3 years, email notification

MailPlus

Intuitive webmail interface for MailPlus Server; customizable mail labels, filters and user interface

MailPlus Server

Secure, reliable, and private mail server solution with High-availability, load balancing, security and filtering design
(Including free MailPlus licenses for 5 mail accounts. Procurement of additional licenses is required.)

Note Station

Rich-text note organization with versioning, encryption, sharing, media embedding and attachments

Storage Analyzer

Volume and quota usage, total size of files, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently modified files

Surveillance Station

Maximum IP camera: 90 (total of 2,700 FPS at 720p, H.264) (Including two free camera licenses. Procurement of additional licenses is required.)

VPN Server

Maximum connections: 30; supported VPN protocols: PPTP, OpenVPN™, L2TP

Web Station

Virtual host (up to 30 websites), PHP/MariaDB®, 3rd-party applications support

Other packages

Photo Station, Audio Station, iTunes® Server, 3rd-party packages
