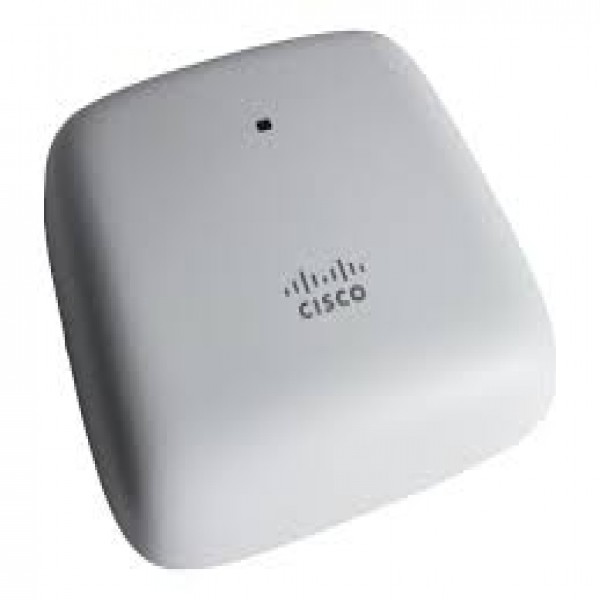

Thiết bị phát sóng không dây Cisco AIR-AP1815I-S-K9

Liên hệ



- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO

- MRC

- 802.11ac beamforming (transmit beamforming)

- 20/40/80-MHz channels

- Sản phẩm chưa bao gồm nguồn, tương thích với nguồn AIR-PWRINJ5= (RTCI051)

- PHY data rates up to 867 Mbps (80 MHz in 5 GHz)

- Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

- 802.11 DFS

- CSD support



Khuyến mãi

Gọi Hotline để nhận nhiều ưu đãi hấp dẫn !

AIR-AP1815I-S-K9

Thông số kỹ thuật

Giao diện

1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) Management console port (RJ-45)

Hiệu suất hoạt động

Bộ nhớ DRAM :1GB, Flash: 256 MB

802.11ac

2x2 single-user/multiuser MIMO with two spatial streams
Maximal ratio combining (MRC)
20-, 40- and 80-MHz channels
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic shift diversity (CSD) support

Nguồn yêu cầu

Power injector: AIR-PWRINJ5= or AIR-PWRINJ6

Nguồn PoE

8.3W (maximum, on PoE)

Anten tích hợp

2.4 GHz, gain 2 dBi
5 GHz, gain 4 dBi

Truy cập tối đa

Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
