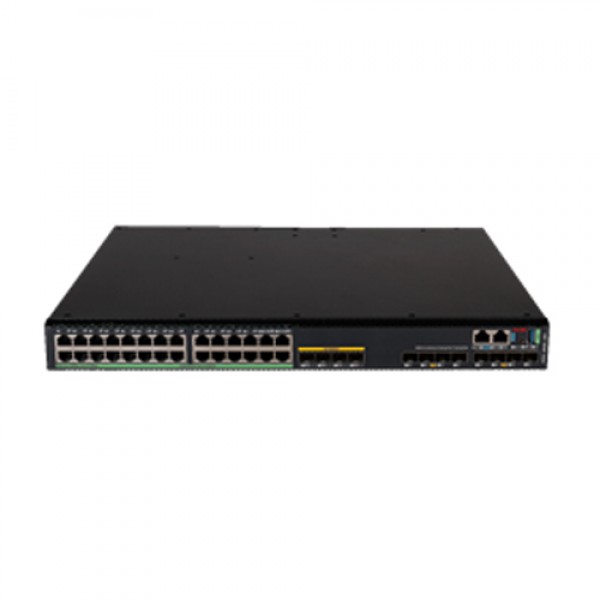

| Datasheet H3C LS-5560X-30C-EI-GL |
| Specification |
| Service ports |
24 x 10/100/1000Base-T autosensing Ethernet ports (including 8 combo interfaces)
4 x 10G SFP+ ports |
| Console ports |
1 x RJ-45 console port
1 x Micro-USB console port
Only the Micro-USB console port is available when you connect both ports |
| Management Ethernet ports |
1 |
| Expansion slots |
1 |
| Compatible interface module |
2-port 40GE QSFP+ interface module
2-port 10G SFP+ interface module
2-port 25G SFP28 interface module
2-Port 10G BASE-T Interface Card with MACSec
2-Port 10G SFP Plus Interface Card with MACSec
4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module
8-Port 10G SFP Plus with MACSec Interface Module
8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module
8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module |
| Performance |
| Port Switching capacity |
288Gbps |
| Packet forwarding rate |
216 Mpps |
| Stacking bandwidth |
Maximum 160Gbps |
| CPU |
Dual Core, 800MHz |
| Flash/SDRAM |
1GB /2GB |
| Feature |
| VLAN |
Port-based VLAN (up to 4094 VLANs) MAC-based VLAN Protocol-based VLAN IP subnet based VLAN QinQ and flexible QinQ VLAN mapping Voice VLAN MVRP (GVRP analog) |
| Link aggregation |
1G/10G/40G port aggregation Static aggregation Dynamic aggregation, Multichassis link aggregation |
| Stacking |
IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces |
| SDN/OpenFlow |
OpenFlow 1.3 Multiple controllers (equal/master/slave controller role) Concurrent processing of multiple flow tables Group table Meter |
| MAC address table |
64K MAC address entries Static MAC address Blackhole MAC address MAC learning limit |
| DHCP |
DHCP client DHCP snooping DHCP relay DHCP server DHCP snooping Option 82/DHCP relay Option 82 |
| DNS |
Static domain name resolution Dynamic domain name resolution for the client IPv4 and IPv6 address |
| Routing protocols |
IPv4 routing number 32K IPv6 routing number 16K Static routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6 Equal-cost multi-path routing (ECMP) and policy routing VRRP/VRRPv3 |
| VXLAN |
VXLAN L2 switching VXLAN L3 routing VXLAN VTEP IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
| Specification Dimensions |
| Dimensions (H x W x D) |
43.6 × 440 × 460 mm
(1.72 × 17.32 × 18.11 in) |
| Weight |
≤ 9.2 kg (20.28 lb) |
| Power |
| AC input voltage |
PSR150-A1&PSR150-A2:
Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz |
| DC input voltage |
PSR150-D1:
Rated: –48 VDC to –60 VDC
Max: –36 VDC to –72 VDC |
| MTBF(Year) |
178.67 |
| Operating temperature |
0ºC to 45ºC (32°F to 113°F) |
| Operating humidity |
5% RH to 95% RH, non-condensing |
