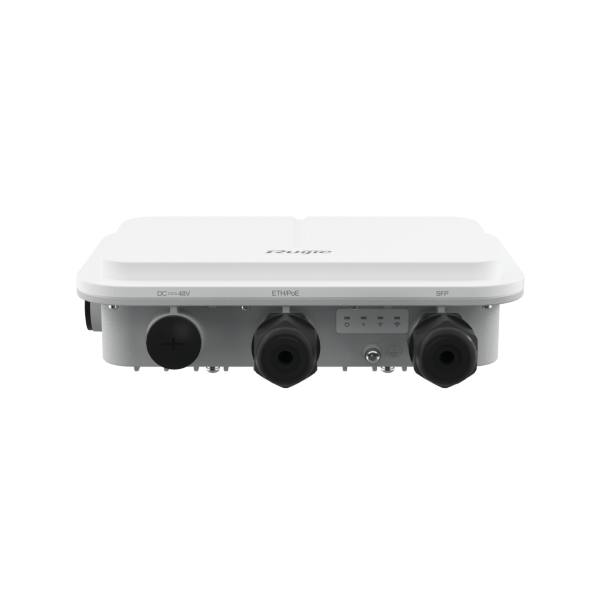

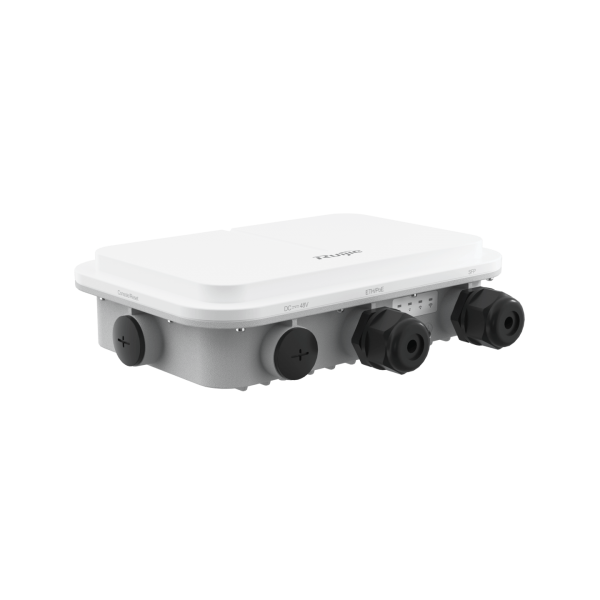

Bộ phát Wifi ngoài trời RUIJIE RG-AP680-L

Liên hệ

Ruijie  Wi-Fi  6  (802.11ax)  outdoor  wireless  access  point,  dual-band  dual-radio,  up  to  575Mbps@2.4G, 2400Mbps@5G and 2976Mbps per AP, 4 spatial streams, built-in omni directional  antenna,  support  802.11a/b/g/n/ac  and  802.11ax,  FAT/FIT  mode,  1  10/100/1000M Base-X SFP  port  and  1  10/100/1000M  Base-T port,  PoE  or  local  power  supply,  bundled  with  Ruijie  Cloud  Service  lifetime  license (Installation Mount-Kit included, but PoE adaptor sold separately)

Khuyến mãi

Gọi Hotline 0977 291 551 - 0332 933 286 - 0393 666 894 để nhận nhiều ưu đãi hấp dẫn !

Mua Ngay
Đặt và nhận hàng qua hình thức ship COD

Thông số kỹ thuật thiết bị RG-AP680-L


Sản phẩm RG-AP680L
Radio Dual-radio and four spatial streams:

●    Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO

●    Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Operating Bands Radio 1: 802.11b/g/n/ax

●    2.400 GHz to 2.483 GHz, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

●    5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

●    5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

●    5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

●    5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Country-specific restrictions apply.
Antenna  Built-in omnidirectional antenna (two 2.4 GHz antennas and two 5 GHz antennas)
Antenna gain 2.4 GHz radio: 4 dBi

5 GHz radio: 6 dBi
Port 1 x 10/100/1000Base-T Ethernet port with auto-negotiation, compliant-with IEEE 802.3af/802.3at standard

1 x GE SFP port

1 x RJ45 console port (serial console port)
Antenna Built-in Directional Smart Antenna (Support exttenal./ internal antenna switching)
Status LED 1 x multi-color system status LED

3 x single-color RSSI LEDs

Power Supply

 ●    48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently.

●    PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).

Power Consumption

 Max power consumption: 12.95 W

●    DC powered: 12.95 W

●    PoE powered (802.3af): 12.95 W

●    PoE+ powered (802.3at): 12.95 W

●    PoE++ powered (802.3bt): 12.95 W

●    Idle mode: 6.0 W
Mounting Ceiling/Pole-mount (a mounting bracket is delivered with the main unit)

Dimensions (W x D x H)

 Unit dimensions: 251 mm x 168 mm x 64 mm (9.88 in x 6.61 in x 2.52 in)

Shipping dimensions: 405 mm x 232 mm x 325 mm (15.94 in x 9.13 in x 12.79 in)

Weight

 Unit weight: Main unit: 1.0 kg (2.20 lbs)

Mounting bracket: 0.9 kg (1.98 lbs)

Shipping weight:3.15 kg (6.94 lbs)

MTBF

 > 250000 H

Temperature

 -40°C to 65°C

Humidity

 0% to 100 %
